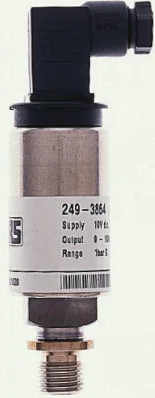

Gems Pressure Sensor, 0bar Min, 25bar Max, Analogue Output, Gauge Reading

Gems Pressure Sensor, 0bar Min, 25bar Max, Analogue Output, Gauge Reading

Store / Surplus electronic components / Electronic components miscellaneous
£177.48
In stock: 1 available
Product Details
UPC: Back Aisle Blue Crate

• Piezo-resistive thick film ceramic sensor

• Compact and rugged
• Output 4-20 mA
• BSP 3/4
• CE Compliant

Material Specifications

• Housing: Stainless Steel 303
• O ring seals: Viton
• Diaphragm: 316L Stainless Steel
• Media wetted parts: Housing & connection, O ring seal, diaphragm
• Weight: 100 g
• Installation position: Flexible
• Operational Life: >100x 106 cycles
• Insulation resistance >50M Ohms at 50 V dc
