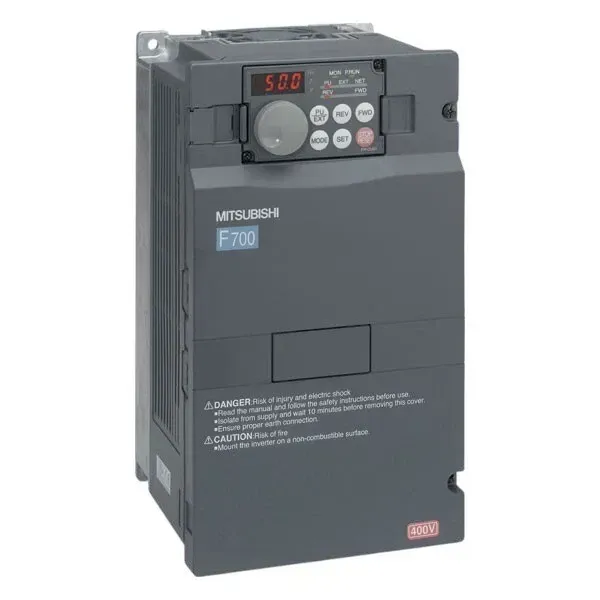

Mitsubishi F700 Inverter (FR-F740-0023)

Size 1 - 150mm Wide x 140mm Deep x 260mm High. IP20
Weight: 3.5kg

Overload - 110% x 60 seconds, 120% x 3 seconds
Speed Control Range - 0.5Hz to 400Hz.
Braking - None (option via external brake unit).

3 Analogue Inputs, 12 Digital Inputs, 2 Analogue Outputs, 5 Digital Outputs, 2 Relay Contact Sets, RS485 Modbus-RTU
Input Current - 3.7A.
Input Voltage - 380-480V Three Phase +10% -15% at 50/60Hz ±5%
EMC Filters to BSEN61800-3 for the 2nd Environment (Industrial).
